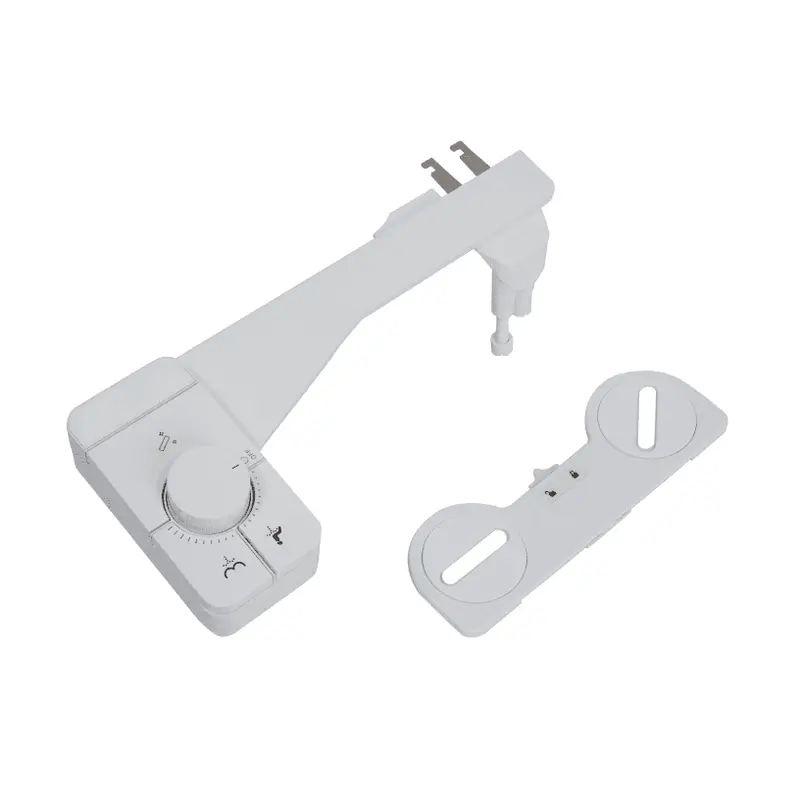

B012 Ultra-Slim Bidet Attachment

Bidet attachments are constructed with high-pressure faucet quality valves made with metal-ceramic core and braided steel hose instead of traditional plastic.The package comes with everything for an easy installation, including a metal cold water t-adapter.

Package Includes:

• 1 * Bidet Attachment
• 1 * Braided Metal Hose
• 1 * Brass T-adapter
• 2 * Fixing Plates
• 1 * Rubber Washer
• 1 * Installation Instructions

Step 1:

Shut off the water supply valve on the wall. Then drain all the water in the toilet tank.

Place bidet on the toilet and align the bidet's adjustable plate holes to the toilet seat holes and screw the toilet seat back on the toilet.


Step 2:

Inspect unit, accessories and their parts. Make sure T-Adapter has the black rubber washer The black rubber washer must be placed on the T-Adapter adapter

Step 3:

As shown in the figure: Try connecting all parts that need connection to make sure that they fit.

Optional: Apply thread seal tape to the threads of the bidet water inlet and T-Adapter.

1. Connect the T-Adapter to the toilet tank water inlet. Hand tighten.

2.Connect the other end of the metal braided metal hose to the T-Adapter. Hand tighten.

3.Connect the existing water supply flexible hose to the other end of the T-Adapter. Hand tighten.


Step 4:

Connect one end of the flexible braided metal hose to the water inlet of the bidet. Hand tighten.

Open the water supply valve.

Check connections for water leaks.

Tighten connections where there is a leak until leak stops.
